Shipping, Handling & Insurance Charge
The minimum shipping charge is $15 per order. Shipping, Handling & Insurance Charge will be calculated automatically at checkout. New York State residents must add sales tax. Sales tax is added at checkout. Heaters will have a shipping charge added to some destinations
$
0.00
Laser 30 Igniter 20479518
L30 igniters fail in two ways. 1) Fails to get hot (electrical open internally) or fails to seal at the point where the wire enters the ceramic and can emmit combustion odors.
$
149.95

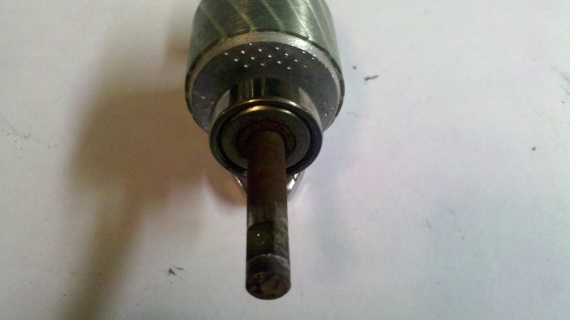

Laser 30 Blower Motor Bearing 20475581
Noisey heater, bearing whines from corrosion caused by moisture and corrosion. To prevent this common problem keep your clock set and the heater on during the summer months. Replaces outer bearing. Expert mechanical skills required for this repair.
$
10.95
Laser 30 Burner Ring 20479543
Replace cracked or warped burner rings for efficient operation.
$
34.95
Laser 30 Burner Mat 20479513
Replacement Burner Mat included special adhesive to rebuild the burner pot.
$
27.95
Laser 30 Thermostat Sensor 20478373
Looks like a little white computer mouse. If the wire breaks or gets shorted you will get a HIGH reading for temperature. You can splice it back together or buy a new sensor. Plugs into the circuit board.
$
25.95
Laser 30 Upper Gasket 20479581
Top Gasket on Combustion Chamber
$
14.95
Laser 30 Lower Gasket 20479582
Lower Gasket between burner pot and upper chamber.
$
13.95
Laser 30 Heat Chamber Gasket 20479593
Gasket on top of Heat Chamber.
$
19.95
Laser 30 Relief Gasket 20479591
Gasket on top of Heat Exchanger.
$
11.95
Laser 30 Joint Gasket 20479592
Gasket between Heat Chamber and Heat Exchanger.
$
12.95
Laser 30 Heat Exchanger 20479544
Heat Exchanger located above Heat Chamber. They occasionally get heat stress cracks and leak fumes. Fumes are most noticable during startup.
$
145.95
Laser 30 Heater Core 20479508
Heater Core located inside Heat Chamber. It is cylindral and looks like a cheese grader.
$
86.95
Laser 30 Thermostat Sensor 20478373
Connects to Main Board to sense room temperature
$
25.95
Laser 30 A Blower Motor 20479537
Motor is mounted inside of case. Identified by hex key to attach fan. Find your A or B... CHECK the last letter of your serial number.
$
134.95
Laser 30 B Blower Motor 20479637
Motor is mounted inside of case. Identified by nut to attach fan. Find your A or B... CHECK the last letter of your serial number.
$
134.95
Laser 30 Drip Pan 20479529
Replacement for damaged or missing tray.
$
42.95
Laser 30 Circuit Board 20479612
Often suspected by inexperienced technicians. Actually the circuit board is one of the most dependable components in these heaters. Even so lightning or power surge can damage them. Always check the fuse on the circuit board first.
$
339.95
Laser 30B Circulation Fan Motor 20479669
Mounted on back side of Heater. Circulates air in room. Fits A Model with replacement of fan blade, order below.
$
134.95
Laser 30 Air Circulation Screen 20479540
Located in rear of Heater behind Circulation Fan. Replace if damaged or missing. Helps to keep the dust out of the heater.
$
19.95
Laser 30 Circulation Fan 20479671
$
23.95
Laser 30 Burner Thermistor 20479573
This part is located on the side of the Burner Pot. The Thermistor regulates the burning temperature and if an error code of EE13 occurs, replacement of this part is indicated.
Expert installation is recommended.
Expert installation is recommended.
$
39.95
Laser 30 Fuel Pump 20479519
DON'T use fuel conditioners that clean injectors.
$
189.95
